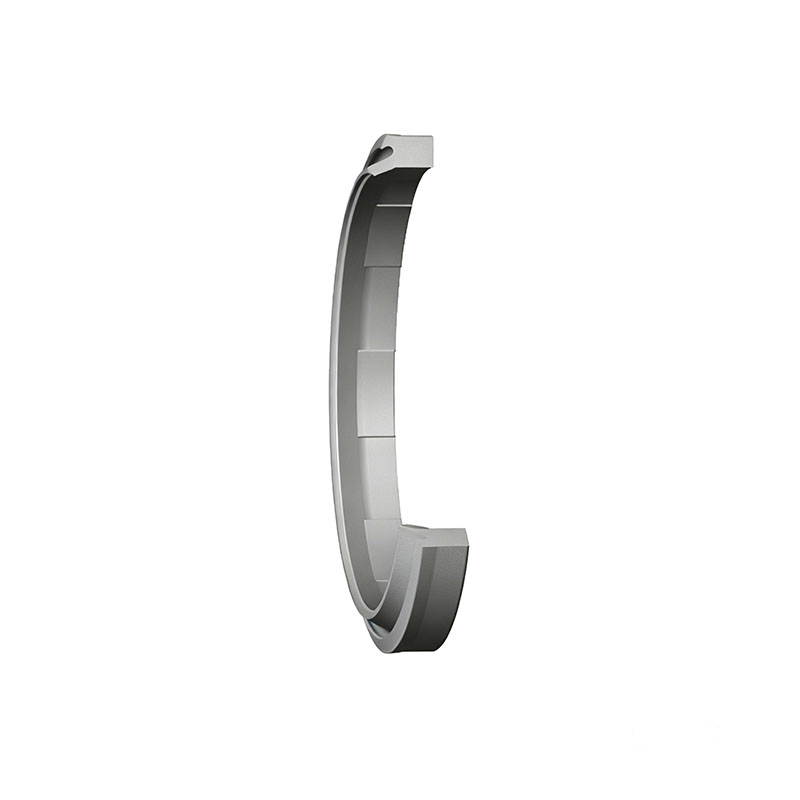

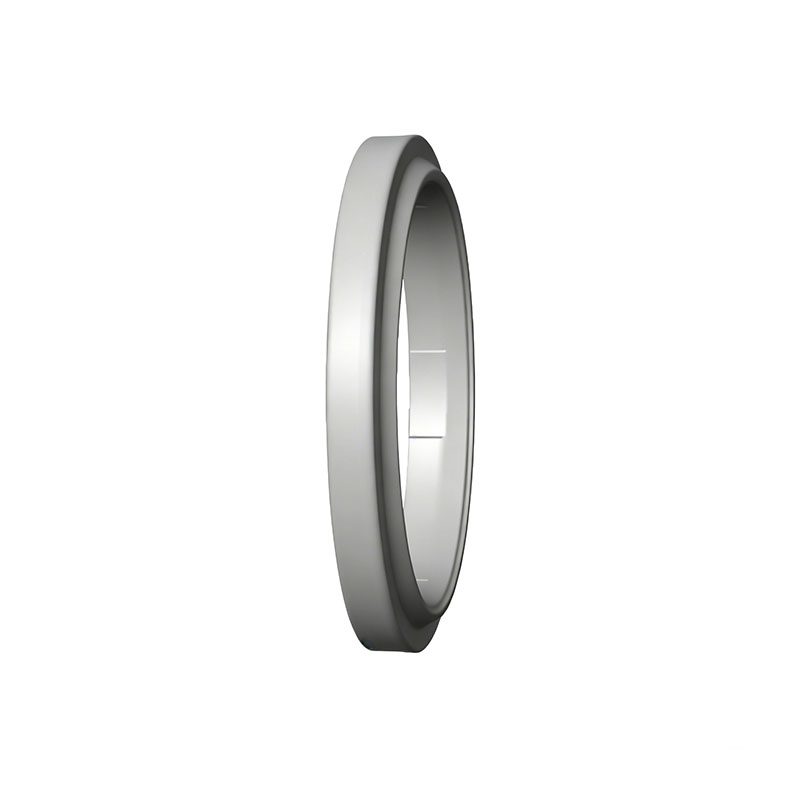

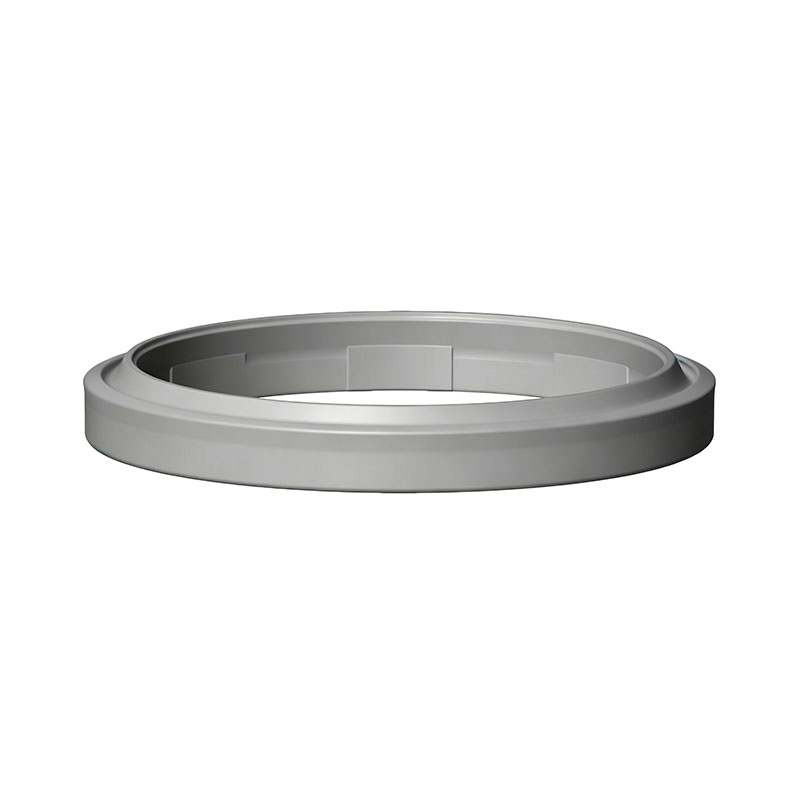

HWT Hydraulic Polyurethane Wiper Seal features a wear-resistant polyurethane construction, dual static sealing lips, reliable dust protection, and stable groove retention.
Item NO.:
HWTOrder(MOQ):
50Payment:
T/TProduct Origin:
ChinaShipping Port:
Shanghai、NingboProduct Description

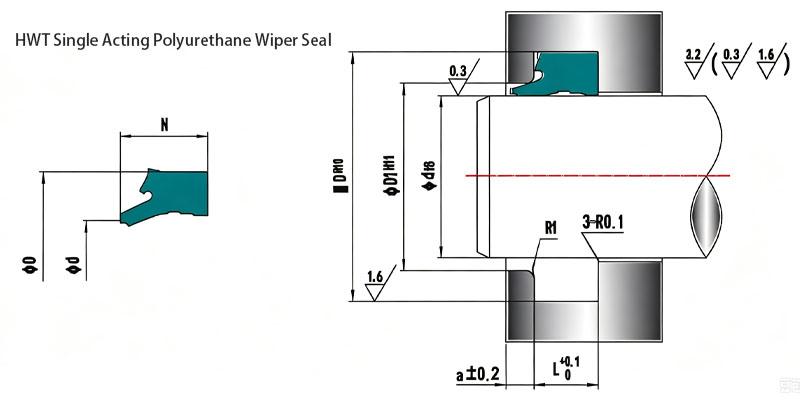

HWT Single Acting Polyurethane Wiper Seal is a polyurethane wiper seal designed to protect hydraulic cylinders from dust, moisture, and other external contaminants. Its special profile incorporates both a radial static sealing lip and an axial static sealing lip, helping the seal remain securely seated in the housing groove while reducing the risk of moisture reaching the groove bottom and causing corrosion.
Made from wear-resistant and weather-resistant polyurethane, HWT provides reliable dust protection and stable sealing performance in low to moderate contamination environments. It is suitable for hydraulic cylinders used in industrial equipment, including injection molding and press machinery.
The Polyurethane Dust Seal can be installed manually by compressing the seal and pressing it into the groove, eliminating the need for special installation tools.
Technical Data
| Parameter | Value |
| Operating temperature | -30°C to +100°C |
| Surface speed | ≤ 0.5 m/s |
| Material | PU |
| Design type | Polyurethane Wiper Seal |
| Unit system | Metric |
Advantages
Product Parameter Table
| Designation | Rod diameter | Housing groove diameter | Housing groove width | Primary sealing element |
| [mm] | [mm] | [mm] | ||
| HWT 18X26X5 P2005 | 18 | 26 | 5 | PU |
| HWT 20X28X5 P2005 | 20 | 28 | 5 | PU |
| HWT 25X33X5 P2005 | 25 | 33 | 5 | PU |
| HWT 28X36X5 P2005 | 28 | 36 | 5 | PU |
| HWT 30X38X6 P2005 | 30 | 38 | 6 | PU |
| HWT 32X40X6 P2005 | 32 | 40 | 6 | PU |
| HWT 35X43X6 P2005 | 35 | 43 | 6 | PU |
| HWT 40X48X6 P2005 | 40 | 48 | 6 | PU |
| HWT 45X53X6 P2005 | 45 | 53 | 6 | PU |
| HWT 50X58X6 P2005 | 50 | 58 | 6 | PU |
| HWT 55X63X6 P2005 | 55 | 63 | 6 | PU |
| HWT 56X64X6 P2005 | 56 | 64 | 6 | PU |
| HWT 60X68X6 P2005 | 60 | 68 | 6 | PU |
| HWT 63X71X6 P2005 | 63 | 71 | 6 | PU |
| HWT 65X73X6 P2005 | 65 | 73 | 6 | PU |
| HWT 70X80X7 P2005 | 70 | 80 | 7 | PU |
| HWT 75X85X7 P2005 | 75 | 85 | 7 | PU |
| HWT 80X90X7 P2005 | 80 | 90 | 7 | PU |
| HWT 85X95X7 P2005 | 85 | 95 | 7 | PU |
| HWT 90X100X7 P2005 | 90 | 100 | 7 | PU |
| HWT 95X105X7 P2005 | 95 | 105 | 7 | PU |
| HWT 100X110X7 P2005 | 100 | 110 | 7 | PU |
| HWT 105X115X7 P2005 | 105 | 115 | 7 | PU |
| HWT 110X120X7 P2005 | 110 | 120 | 7 | PU |
| HWT 115X125X7 P2005 | 115 | 125 | 7 | PU |
| HWT 120X130X7 P2005 | 120 | 130 | 7 | PU |
| HWT 125X138X8 P2005 | 125 | 138 | 8 | PU |
| HWT 130X143X8 P2005 | 130 | 143 | 8 | PU |
| HWT 140X153X8 P2005 | 140 | 153 | 8 | PU |
| HWT 145X158X8 P2005 | 145 | 158 | 8 | PU |
| HWT 150X163X8 P2005 | 150 | 163 | 8 | PU |
| HWT 160X173X8 P2005 | 160 | 173 | 8 | PU |
| HWT 170X183X8 P2005 | 170 | 183 | 8 | PU |
| HWT 170X184X8 P2005 | 170 | 184 | 8 | PU |
| HWT 180X194X8 P2005 | 180 | 194 | 8 | PU |
| HWT 200X214X8 P2005 | 200 | 214 | 8 | PU |
| HWT 230X244X8 P2005 | 230 | 244 | 8 | PU |
HWT Wiper Seal
 |
|
| Material code | P2005 |
| Speed | Up to 0.5 m/s (1.6 ft/s) |
| Temperature range | -30°C to +100°C(–22 to +212 °F) |
| Dimension standards | Some sizes fit seal housings in accordance with ISO 6195-B:2013. |
| Size list | → Metric |
| Additional information | → Metric Hydraulic Wiper Seal |
| Maximum values of application parameters (e.g. speed, temperature) should not be applied continuously nor simultaneously. | |
