HWE Single Acting Hydraulic Wiper Seal is made of wear-resistant polyurethane, providing excellent dust protection, weather resistance, low friction, and stable groove retention.
Item NO.:
HWEOrder(MOQ):
50Payment:
T/TProduct Origin:
ChinaShipping Port:
Shanghai、NingboProduct Description

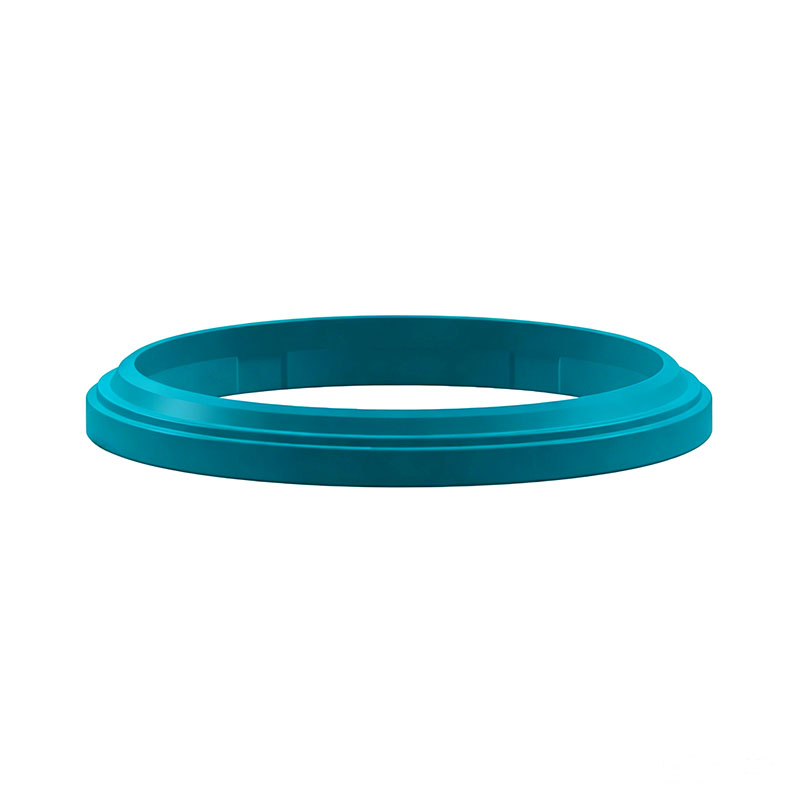

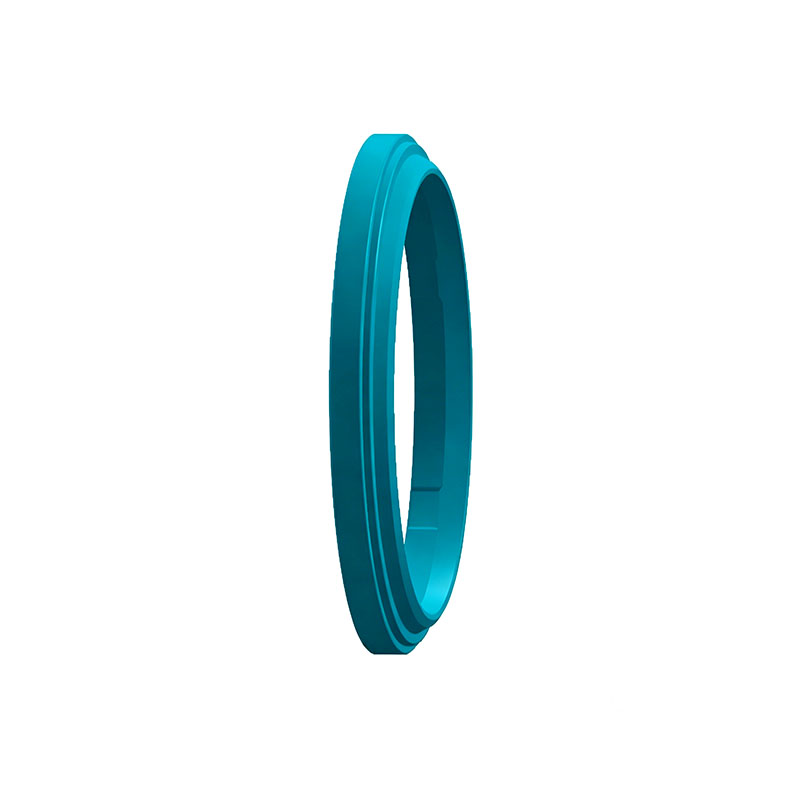

HWE Single Acting Hydraulic Wiper Seal is a polyurethane wiper seal designed to protect hydraulic cylinders from dust, moisture, and other external contaminants. Its interference-fit outer diameter ensures a secure fit in the housing groove, helping prevent contaminants from entering the cylinder.

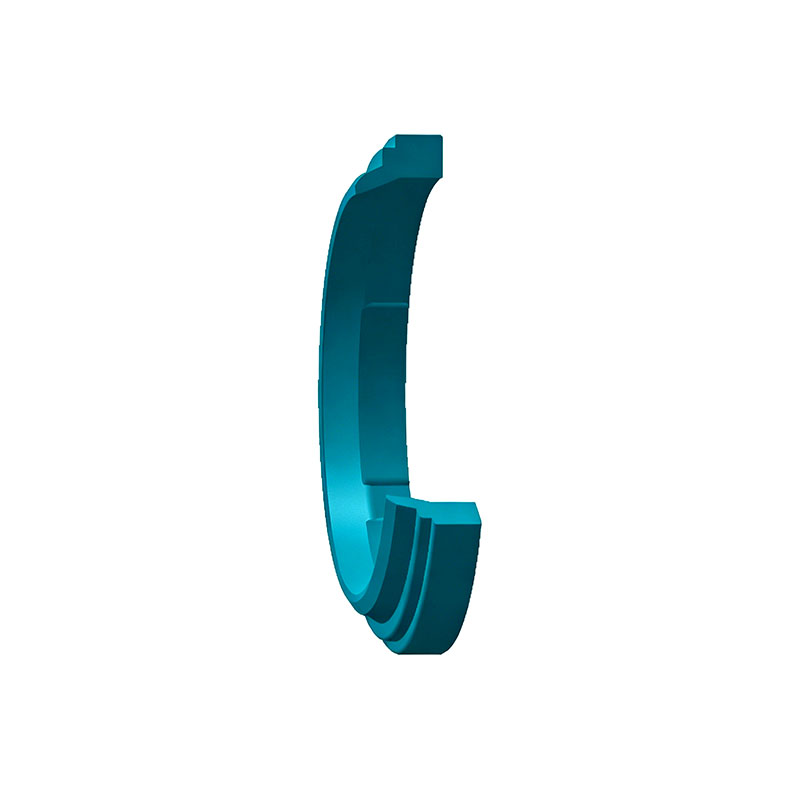

A raised base design reduces the contact area between the piston rod and the wiper seal, helping lower friction and reducing the risk of the seal being pulled out of the groove during high-speed or long-stroke operation.
HWE is particularly suitable for low to moderate contamination environments, including hydraulic seals for injection molding machines and other industrial hydraulic applications.
Technical Data
| Parameter | Value |
| Operating temperature | -30°C to +100°C |
| Surface speed | ≤ 0.5 m/s |
| Material | PU |
| Design type | Hydraulic Wiper Seal |
| Unit system | Metric |
Advantages
Product Parameter Table

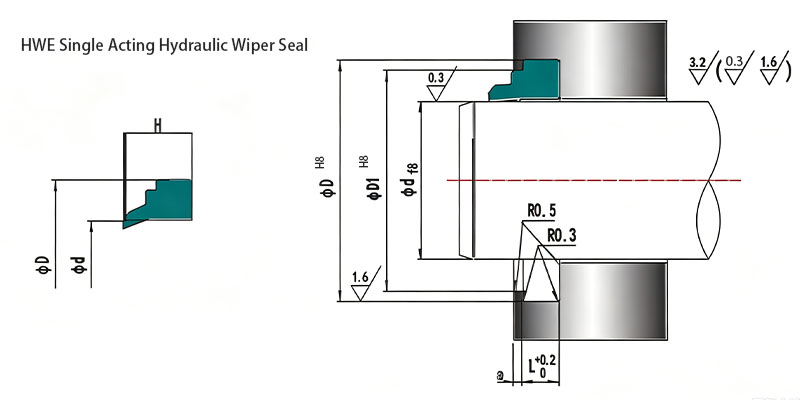

| Designation | Rod diameter | Housing groove diameter | Housing groove width | Primary sealing element |
| [mm] | [mm] | [mm] | ||
| HWE 12X20X18X4X7 P2005 | 12 | 20 | 4 | PU |
| HWE 14X22X20X4X7 P2005 | 14 | 22 | 4 | PU |
| HWE 16X24X22X4X7 P2005 | 16 | 24 | 4 | PU |
| HWE 18X26X24X4X7 P2005 | 18 | 26 | 4 | PU |
| HWE 20X28X26X4X7 P2005 | 20 | 28 | 4 | PU |
| HWE 22X30X28X4X7 P2005 | 22 | 30 | 4 | PU |
| HWE 25X33X31X4X7 P2005 | 25 | 33 | 4 | PU |
| HWE 28X36X34X4X7 P2005 | 28 | 36 | 4 | PU |
| HWE 30X38X36X4X7 P2005 | 30 | 38 | 4 | PU |
| HWE 32X40X38X4X7 P2005 | 32 | 40 | 4 | PU |
| HWE 35X43X41X4X7 P2005 | 35 | 43 | 4 | PU |
| HWE 36X44X42X4X7 P2005 | 36 | 44 | 4 | PU |
| HWE 40X48X46X4X7 P2005 | 40 | 48 | 4 | PU |
| HWE 45X53X51X4X7 P2005 | 45 | 53 | 4 | PU |
| HWE 50X58X56X4X7 P2005 | 50 | 58 | 4 | PU |
| HWE 55X63X61X4X7 P2005 | 55 | 63 | 4 | PU |
| HWE 56X64X62X4X7 P2005 | 56 | 64 | 4 | PU |
| HWE 60X68X66X4X7 P2005 | 60 | 68 | 4 | PU |
| HWE 63X71X69X4X7 P2005 | 63 | 71 | 4 | PU |
| HWE 65X73X71X4X7 P2005 | 65 | 73 | 4 | PU |
| HWE 70X78X76X4X7 P2005 | 70 | 78 | 4 | PU |
| HWE 75X83X81X4X7 P2005 | 75 | 83 | 4 | PU |
| HWE 80X88X86X4X7 P2005 | 80 | 88 | 4 | PU |
| HWE 85X93X91X4X7 P2005 | 85 | 93 | 4 | PU |
| HWE 90X98X96X4X7 P2005 | 90 | 98 | 4 | PU |
| HWE 95X103X101X4X7 P2005 | 95 | 103 | 4 | PU |
| HWE 97X105X103X4X7 P2005 | 97 | 105 | 4 | PU |
| HWE 100X108X106X4X7 P2005 | 100 | 108 | 4 | PU |
| HWE 105X117X114X5 .5X10 P2005 | 105 | 117 | 5.5 | PU |
| HWE 110X122X119X5 .5X10 P2005 | 110 | 122 | 5.5 | PU |
| HWE 120X132X129X5 .5X10 P2005 | 120 | 132 | 5.5 | PU |
| HWE 125X137X134X5 .5X10 P2005 | 125 | 137 | 5.5 | PU |
| HWE 130X142X139X5 .5X10 P2005 | 130 | 142 | 5.5 | PU |
| HWE 140X152X149X5 .5X10 P2005 | 140 | 152 | 5.5 | PU |
| HWE 145X157X154X5 .5X10 P2005 | 145 | 157 | 5.5 | PU |
| HWE 150X162X159X5 .5X10 P2005 | 150 | 162 | 5.5 | PU |
| HWE 160X172X169X5 .5X10 P2005 | 160 | 172 | 5.5 | PU |
| HWE 170X182X179X5 .5X10 P2005 | 170 | 182 | 5.5 | PU |
| HWE 180X192X189X5 .5X10 P2005 | 180 | 192 | 5.5 | PU |
| HWE 190X202X199X5 .5X10 P2005 | 190 | 202 | 5.5 | PU |
| HWE 200X212X209X5 .5X10 P2005 | 200 | 212 | 5.5 | PU |
| HWE 220X235X231X6 .5X13 P2005 | 220 | 235 | 6.5 | PU |
| HWE 230X245X241X6 .5X13 P2005 | 230 | 245 | 6.5 | PU |
| HWE 240X255X251X6 .5X13 P2005 | 240 | 255 | 6.5 | PU |
| HWE 260X275X271X6 .5X13 P2005 | 260 | 275 | 6.5 | PU |
| HWE 275X290X286X6 .5X13 P2005 | 275 | 290 | 6.5 | PU |
| HWE 325X340X336X6 .5X13 P2005 | 325 | 340 | 6.5 | PU |
HWE Wiper Seal
 |
|
| Material code | P2005 |
| Speed | Up to 0.5 m/s (1.6 ft/s) |
| Temperature range | -30°C to +100°C(–22 to +212 °F) |
| Dimension standards | Some sizes fit seal housings in accordance with ISO 6195-B:2013. |
| Size list | → Metric |
| Additional information | → Hydraulic Wiper Seal |
| Maximum values of application parameters (e.g. speed, temperature) should not be applied continuously nor simultaneously. | |
