HWC Durable Polyurethane Wiper Seal provides effective mud and contaminant removal, high wear resistance, and stable groove sealing for demanding mining and hydraulic applications.
Item NO.:
HWCOrder(MOQ):
50Payment:
T/TProduct Origin:
ChinaShipping Port:
Shanghai、NingboProduct Description

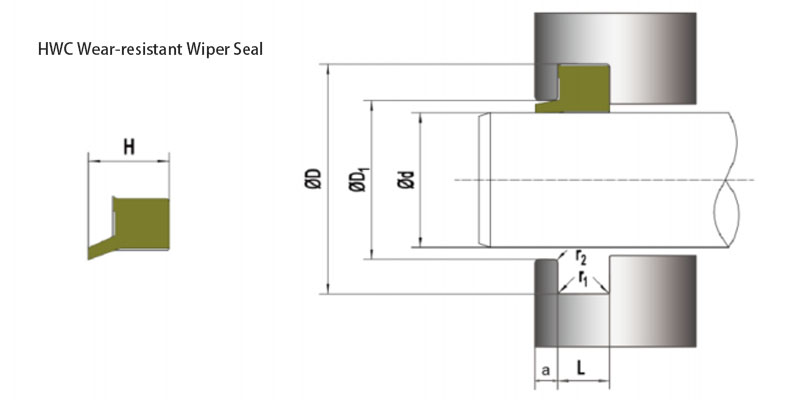

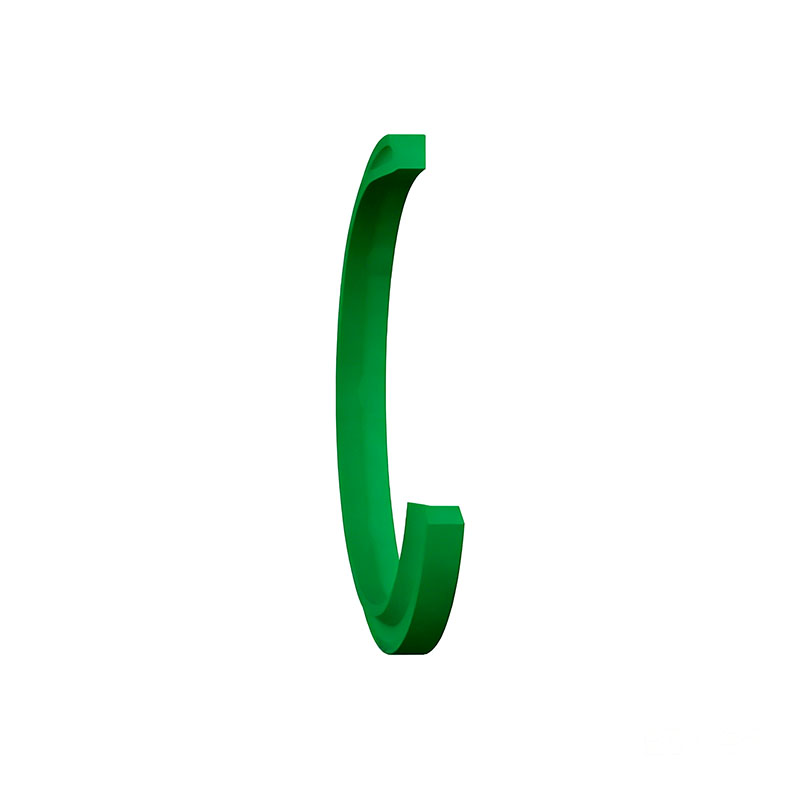

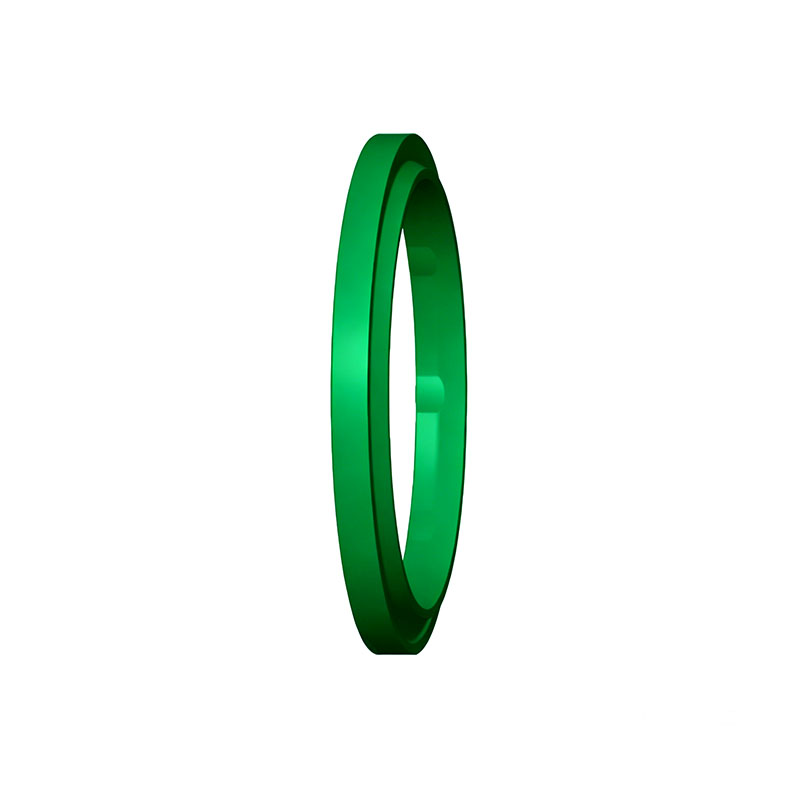

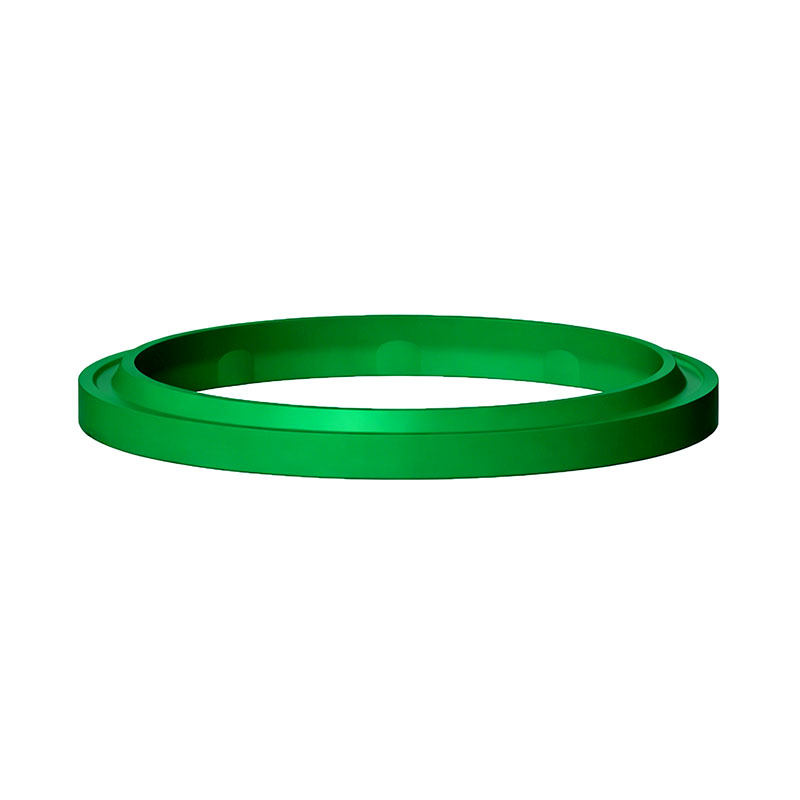

HWC Wear-resistant Wiper Seal is designed to provide reliable protection for hydraulic cylinders operating in harsh and highly contaminated environments. Its specially designed wiper lip maintains close contact with the piston rod surface, effectively removing mud, dirt, and other heavy contaminants during reciprocating movement.
The outer lip fits tightly against the housing groove to help prevent contaminants from entering the cylinder. HWC combines excellent wear resistance, low compression set, and resistance to extrusion, ensuring long-term, reliable performance. It is an ideal scraper wiper seal for mining equipment and other hydraulic machinery exposed to severely contaminated environments.
Technical Data
| Parameter | Value |
| Operating temperature | -20°C to +100°C |
| Surface speed | ≤ 1 m/s |
| Material | PU |
| Design type | Mining Wiper Seal |
| Unit system | Metric |
| Working Fluids | Avoid direct contact with the medium |
Advantages
Product Parameter Table
| Designation | Rod diameter | Housing groove diameter | Housing groove width | Primary sealing element |
| [mm] | [mm] | [mm] | ||
| HWC 45×55.6×48×5.3×7.5 P2019 | 45 | 55.6 | 5.3 | PU |
| HWC 45×61×50×6.5×9 P2019 | 45 | 61 | 6.5 | PU |
| HWC 60×70.6×63×5.3×7 P2019 | 60 | 70.6 | 5.3 | PU |
| HWC 60×76×65×6.5×10 P2019 | 60 | 76 | 6.5 | PU |
| HWC 63×73.6×66×5.3×7 P2019 | 63 | 73.6 | 5.3 | PU |
| HWC 70×82.2×76×7.2×12 P2019 | 70 | 82.2 | 7.2 | PU |
| HWC 70×86×75×6.5×10 P2019 | 70 | 86 | 6.5 | PU |
| HWC 85×98×92×7.5×11.5 P2019 | 85 | 98 | 7.5 | PU |
| HWC 85×101×90×6.5×10 P2019 | 85 | 101 | 6.5 | PU |
| HWC 90×102.2×96×7.2×12 P2019 | 90 | 102.2 | 7.2 | PU |
| HWC 100×112.2×106×7.2×12 P2019 | 100 | 112.2 | 7.2 | PU |
| HWC 105×120×112×7.2×12 P2019 | 105 | 120 | 7.2 | PU |
| HWC 105×125×111×8×11 P2019 | 105 | 125 | 8 | PU |
| HWC 120×132.2×126×7.2×12 P2019 | 120 | 132.2 | 7.2 | PU |
| HWC 120×135×127.5×9.5×14 P2019 | 120 | 135 | 9.5 | PU |
| HWC 120×135×130×9.5×14 P2019 | 120 | 135 | 9.5 | PU |
| HWC 120×140×126×8×12 P2019 | 120 | 140 | 8 | PU |
| HWC 130×142.2×136×7.2×12 P2019 | 130 | 142.2 | 7.2 | PU |
| HWC 140×152.2×146×7.7×12 P2019 | 140 | 152.2 | 7.7 | PU |
| HWC 160×175×167.6×10.2×16 P2019 | 160 | 175 | 10.2 | PU |
| HWC 160×184×167×9×14 P2019 | 160 | 184 | 9 | PU |
| HWC 185×200×192.5×10.2×16 P2019 | 185 | 200 | 10.2 | PU |
| HWC 185×209×192×9×14 P2019 | 185 | 209 | 9 | PU |
| HWC 210×225×217.5×9.5×14 P2019 | 210 | 225 | 9.5 | PU |
| HWC 210×225×220×9.5×14 P2019 | 210 | 225 | 9.5 | PU |
| HWC 210×226×218×9×13 P2019 | 210 | 226 | 9 | PU |
| HWC 210×234×217×9×14 P2019 | 210 | 234 | 9 | PU |
| HWC 220×235×227×10.2×16 P2019 | 220 | 235 | 10.2 | PU |
| HWC 230×250×240×10.2×18 P2019 | 230 | 250 | 10.2 | PU |
| HWC 230×254×237×9×14 P2019 | 230 | 254 | 9 | PU |
| HWC 235×255×245×10.2×18 P2019 | 235 | 255 | 10.2 | PU |
| HWC 240×260×250×10.2×18 P2019 | 240 | 260 | 10.2 | PU |
| HWC 260×280×270×10.2×18 P2019 | 260 | 280 | 10.2 | PU |
| HWC 260×284×267×9×14 P2019 | 260 | 284 | 9 | PU |
| HWC 275×295×285×10.2×18 P2019 | 275 | 295 | 10.2 | PU |
| HWC 295×315×305×12.5×18 P2019 | 295 | 315 | 12.5 | PU |
| HWC 295×315×308.5×12.5×18 P2019 | 295 | 315 | 12.5 | PU |
| HWC 320×340×330×10.2×18 P2019 | 320 | 340 | 10.2 | PU |
| HWC 335×355×345×10.2×18 P2019 | 335 | 355 | 10.2 | PU |
| HWC 340×360×350×10.2×18 P2019 | 340 | 360 | 10.2 | PU |
| HWC 355×375×365×10.2×18 P2019 | 355 | 375 | 10.2 | PU |
| HWC 370×390×380×10.2×18 P2019 | 370 | 390 | 10.2 | PU |
| HWC 380×400×393.5×12.5×18 P2019 | 380 | 400 | 12.5 | PU |
| HWC 395×415×405×10.2×18 P2019 | 395 | 415 | 10.2 | PU |
| HWC 420×445×430×12.5×18 P2019 | 420 | 445 | 12.5 | PU |
| HWC 430×450×440×10.2×18 P2019 | 430 | 450 | 10.2 | PU |
| HWC 470×490×480×10.2×18 P2019 | 470 | 490 | 10.2 | PU |
| HWC 490×510×500×10.2×18 P2019 | 490 | 510 | 10.2 | PU |
| HWC 560×585×570×12.5×18 P2019 | 560 | 585 | 12.5 | PU |
| HWC 590×610×600×10.2×18 P2019 | 590 | 610 | 10.2 | PU |
HWC Wiper Seal
| Material code | P2019 |
| Speed | Up to 1 m/s (3.2 ft/s) |
| Temperature range | -20°C to +100°C(–4 to +212 °F) |
| Dimension standards | Some sizes fit seal housings in accordance with ISO 6195-B:2013. |
| Size list | → Metric |
| Additional information | → Mining Wiper Seal |
| Maximum values of application parameters (e.g. speed, temperature) should not be applied continuously nor simultaneously. | |
