HWBA Mining Wiper Seal features a high-hardness PU construction, excellent scraping performance, low friction, and reliable protection against water and dust.
Item NO.:
HWBAOrder(MOQ):
50Payment:
T/TProduct Origin:
ChinaShipping Port:
Shanghai、NingboProduct Description

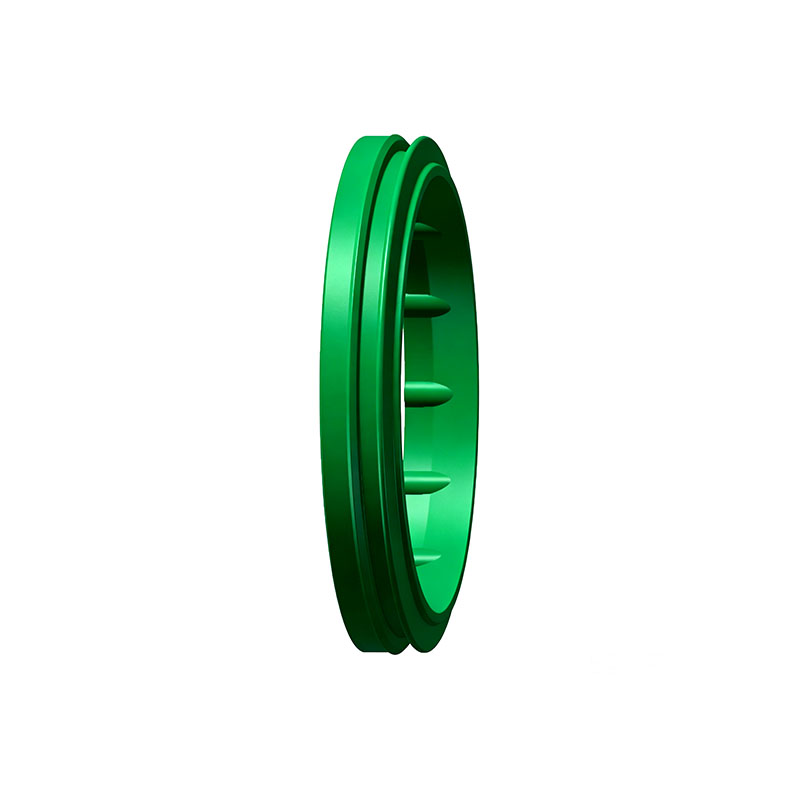

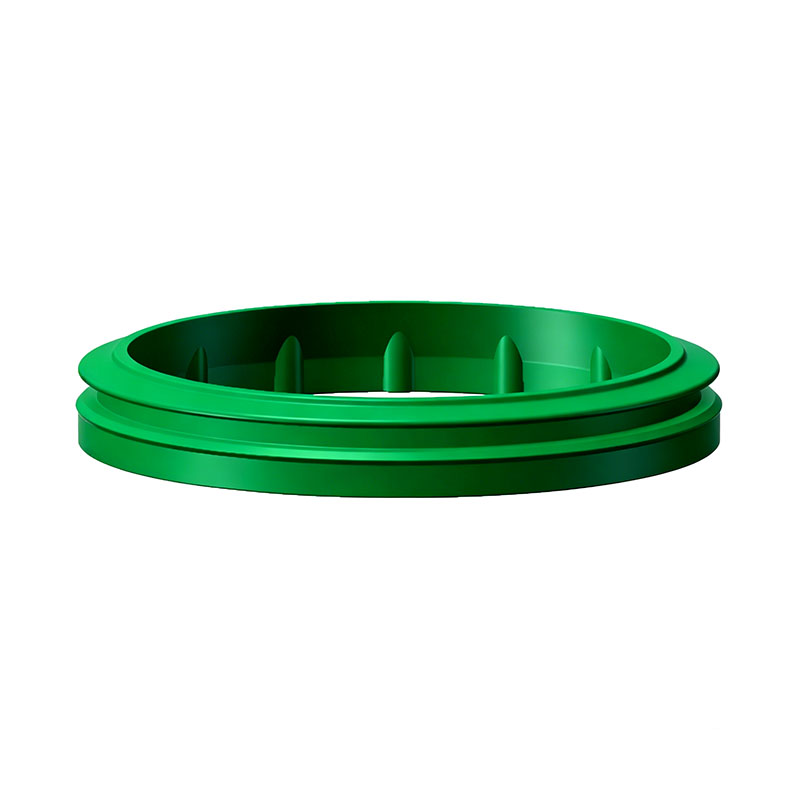

HWBA Waterproof Wiper Seal is a single lip wiper seal made from high-hardness, wear-resistant polyurethane. Its specially designed sealing lip provides excellent scraping performance, helping prevent water, dust, and other contaminants from entering hydraulic cylinders in demanding operating environments.
HWBA wiper seal maintains effective waterproof performance even when the piston rod is subject to eccentric movement. Its low-friction design and strong resistance to extrusion make it particularly suitable for hydraulic cylinders exposed to heavy side loads, including mining hydraulic supports.
Technical Data
| Parameter | Value |
| Operating temperature | -20°C to +100°C |
| Surface speed | ≤ 1 m/s |
| Material | PU |
| Design type | Mining Wiper Seal |
| Unit system | Metric |
Material & Design
HWBA is manufactured from high-hardness, wear-resistant polyurethane, combining good wear resistance, low friction, and high extrusion resistance.

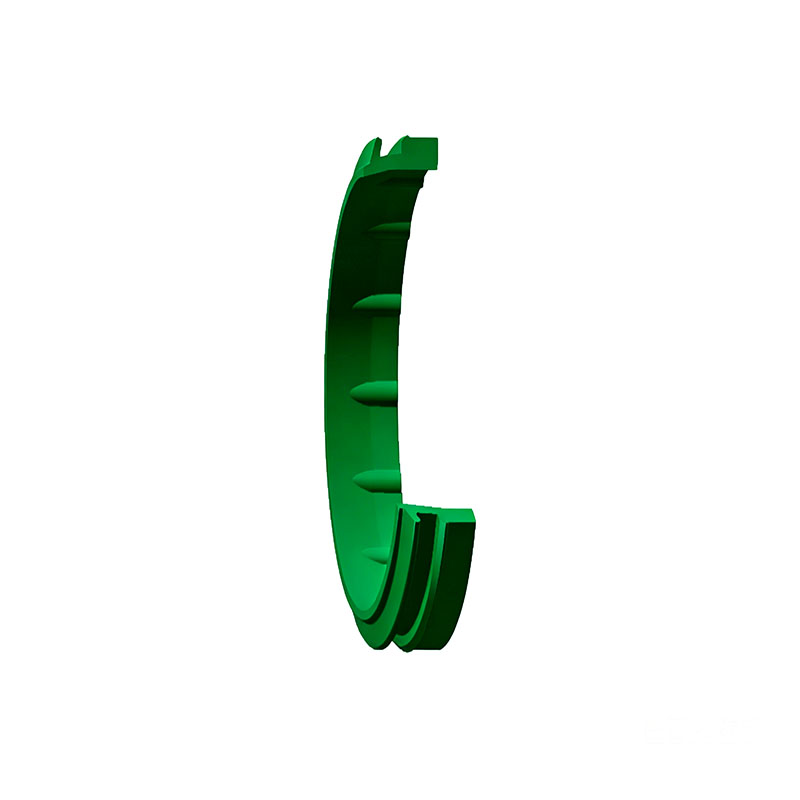

Its single-lip profile is designed to provide effective scraping and waterproofing while accommodating piston rod eccentricity, making it suitable for demanding hydraulic applications.

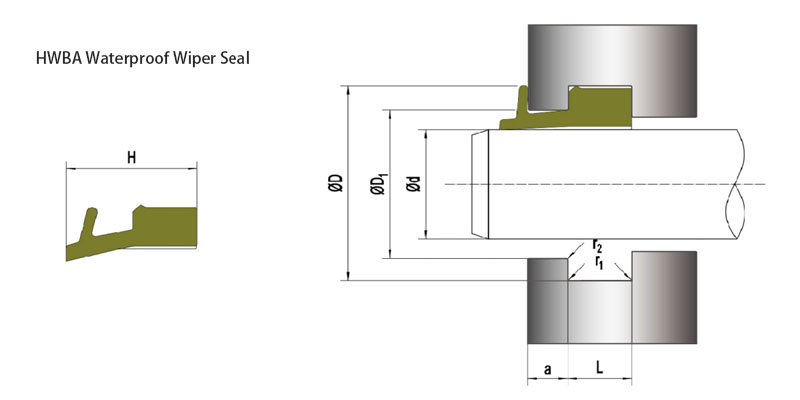

Product Parameter Table
| Designation | Rod diameter | Housing groove diameter | Housing groove width | Primary sealing element |
| [mm] | [mm] | [mm] | ||
| HWBA 85×98×92×7.5×11.5 P2019 | 85 | 98 | 7.5 | PU |
| HWBA 105×120×112×7.2×12 P2019 | 105 | 120 | 7.2 | PU |
| HWBA 120×135×127.5×9.5×14 P2019 | 120 | 135 | 9.5 | PU |
| HWBA 130×142.2×136×7.2×12 P2019 | 130 | 142.2 | 7.2 | PU |
| HWBA 140×152.2×146×7.7×12 P2019 | 140 | 152.2 | 7.7 | PU |
| HWBA 160×175×167.6×10.2×16 P2019 | 160 | 175 | 10.2 | PU |
| HWBA 185×200×192.5×10.2×16 P2019 | 185 | 200 | 10.2 | PU |
| HWBA 210×225×217.5×9.5×14 P2019 | 210 | 225 | 9.5 | PU |
| HWBA 220×235×227.6×10.2×16 P2019 | 220 | 235 | 10.2 | PU |
| HWBA 230×250×240×10.2×18 P2019 | 230 | 250 | 10.2 | PU |
| HWBA 235×255×245×10.2×18 P2019 | 235 | 255 | 10.2 | PU |
| HWBA 240×260×250×10.2×18 P2019 | 240 | 260 | 10.2 | PU |
| HWBA 260×280×270×10.2×18 P2019 | 260 | 280 | 10.2 | PU |
| HWBA 275×295×285×10.2×15 P2019 | 275 | 295 | 10.2 | PU |
| HWBA 295×315×305×12.5×18 P2019 | 295 | 315 | 12.5 | PU |
| HWBA 320×340×330×10.2×18 P2019 | 320 | 340 | 10.2 | PU |
| HWBA 335×355×345×10.2×18 P2019 | 335 | 355 | 10.2 | PU |
| HWBA 340×360×350×10.2×18 P2019 | 340 | 360 | 10.2 | PU |
| HWBA 355×375×365×10.2×18 P2019 | 355 | 375 | 10.2 | PU |
| HWBA 370×390×380×10.2×18 P2019 | 370 | 390 | 10.2 | PU |
| HWBA 380×400×393.5×12.5×18 P2019 | 380 | 400 | 12.5 | PU |
| HWBA 395×415×405×10.2×18 P2019 | 395 | 415 | 10.2 | PU |
| HWBA 420×445×430×12.5×15.5 P2019 | 420 | 445 | 12.5 | PU |
| HWBA 425×445×435×10.2×18 P2019 | 425 | 445 | 10.2 | PU |
| HWBA 430×450×440×10.2×18 P2019 | 430 | 450 | 10.2 | PU |
| HWBA 445×465×455×10.2×18 P2019 | 445 | 465 | 10.2 | PU |
| HWBA 470×490×480×10.2×18 P2019 | 470 | 490 | 10.2 | PU |
| HWBA 490×510×500×10.2×18 P2019 | 490 | 510 | 10.2 | PU |
| HWBA 560×585×570×12.5×15.5 P2019 | 560 | 585 | 12.5 | PU |
| HWBA 590×610×600×10.2×18 P2019 | 590 | 610 | 10.2 | PU |
