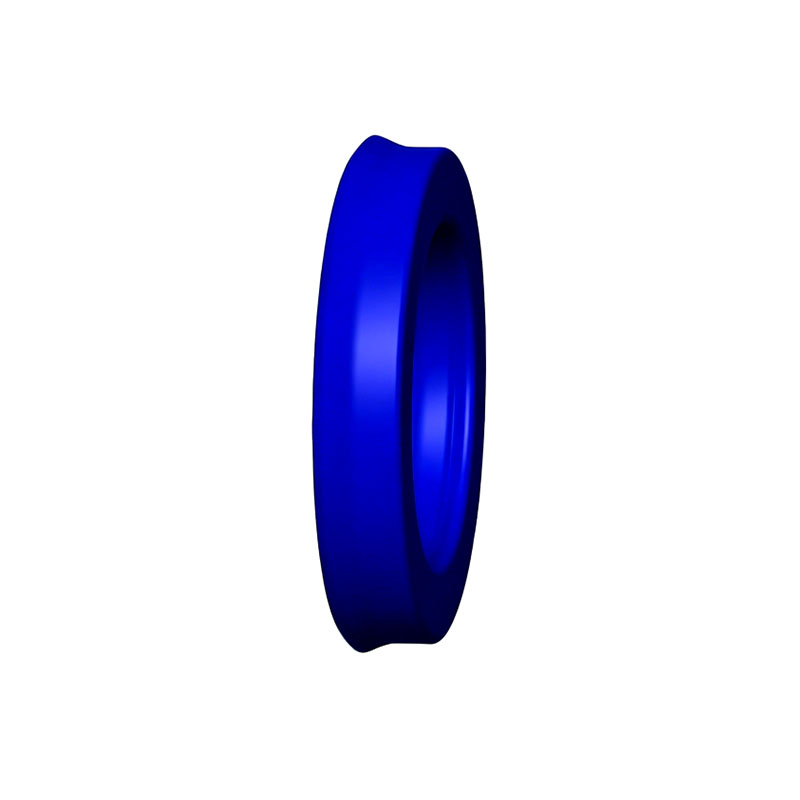

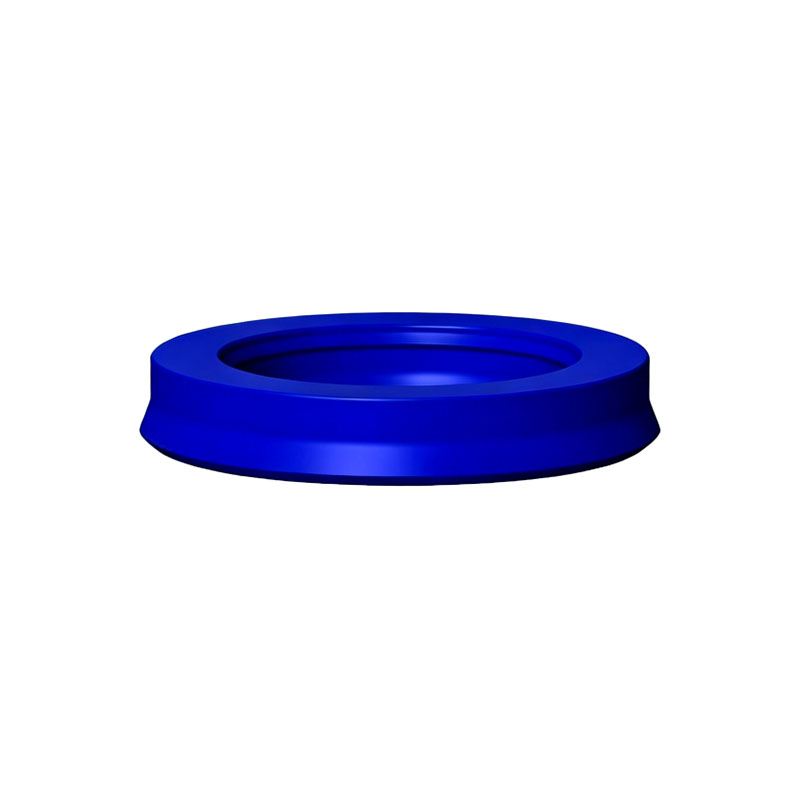

HRE Hydraulic Cylinder Rod Seal features a pressure-energized PU and NBR design for excellent low-pressure sealing, wear resistance, and reliable performance in hydraulic cylinders, telescopic cylinders, rock drills, and mobile equipment.
Item NO.:
HREOrder(MOQ):
50Payment:
T/TProduct Origin:
ChinaShipping Port:
ShanghaiProduct Description

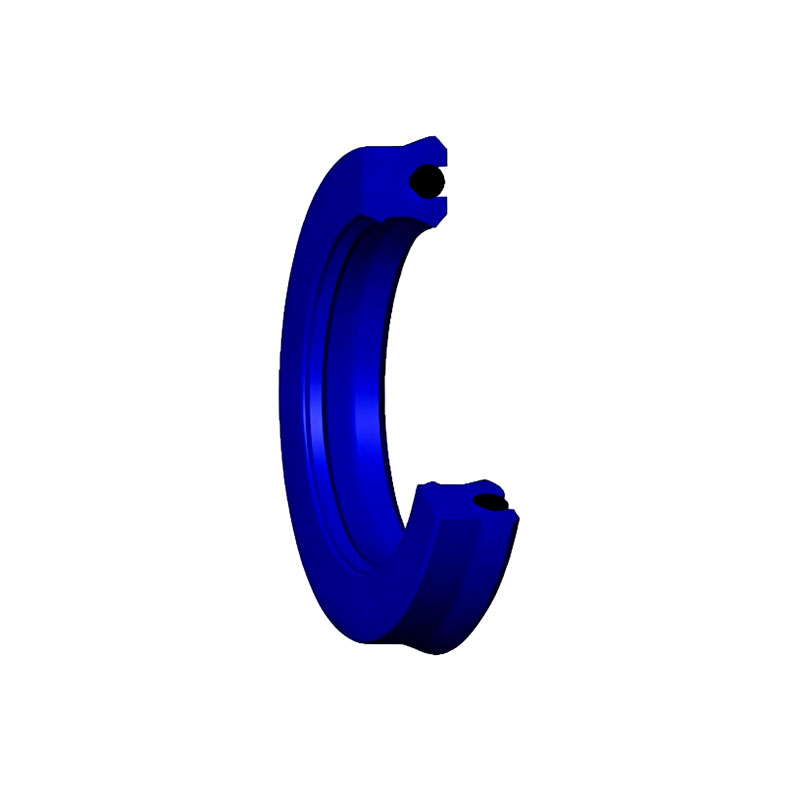

HRE Hydraulic Cylinder Rod Seal is a pressure-energized sealing solution designed for hydraulic cylinders operating under low-pressure, high-pressure, and fluctuating pressure conditions. Compared with conventional U-cup rod seals, the HRE incorporates a highly elastic NBR O-ring inside the sealing lip, providing continuous radial preload and ensuring reliable sealing performance even at low pressure or vacuum conditions.
As system pressure increases, the pressure-energized design enhances lip contact force, delivering superior sealing efficiency and preventing leakage. The combination of polyurethane and elastomer components gives this PU NBR Hydraulic Rod Seal excellent wear resistance, extrusion resistance, and long-term reliability, making it particularly suitable for demanding hydraulic applications and low-temperature environments.
Technical Data
| Parameter | Value |
| Operating temperature | -46°C to +90°C |
| Working Pressure | ≤ 30 MPa |
| Surface speed | ≤ 0.5 m/s |
| Material | PU+NBR |
| Design type | Hydraulic Cylinder Rod Seal |
| Unit system | Metric |
|
Applications
|
Advantages
|

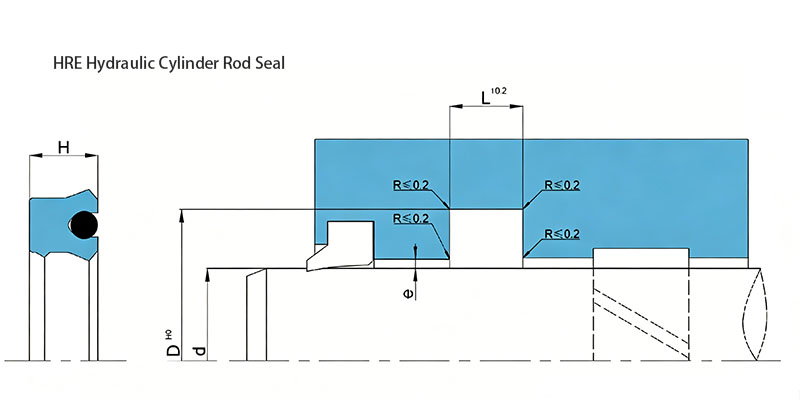

Product Parameter Table
| Designation | Rod diameter | Housing groove diameter | Housing groove width | Primary sealing element |
| [mm] | [mm] | [mm] | ||
| HRE 55X65X11 M6006 | 55 | 65 | 11 | PU+NBR |
| HRE 60X75X10 M6006 | 60 | 75 | 10 | PU+NBR |
| HRE 65X80X10 M6006 | 65 | 80 | 10 | PU+NBR |
| HRE 70X80X8 M6006 | 70 | 80 | 8 | PU+NBR |
| HRE 75X90X10 M6006 | 75 | 90 | 10 | PU+NBR |
| HRE 80X95X12.5 M6006 | 80 | 95 | 12.5 | PU+NBR |
| HRE 85X100X10 M6006 | 85 | 100 | 10 | PU+NBR |
| HRE 90X105X10 M6006 | 90 | 105 | 10 | PU+NBR |
| HRE 100X115X10 M6006 | 100 | 115 | 10 | PU+NBR |
| HRE 110X125X10 M6006 | 110 | 125 | 10 | PU+NBR |
| HRE 120X135X10 M6006 | 120 | 135 | 10 | PU+NBR |
| HRE 125X140X10 M6006 | 125 | 140 | 10 | PU+NBR |
| HRE 130X145X10 M6006 | 130 | 145 | 10 | PU+NBR |
| HRE 140X155X10 M6006 | 140 | 155 | 10 | PU+NBR |
| HRE 150X165X10 M6006 | 150 | 165 | 10 | PU+NBR |
| HRE 160X175X10 M6006 | 160 | 175 | 10 | PU+NBR |
| HRE 170X185X10 M6006 | 170 | 185 | 10 | PU+NBR |
| HRE 180X200X13 M6006 | 180 | 200 | 13 | PU+NBR |
| HRE 190X210X13 M6006 | 190 | 210 | 13 | PU+NBR |
| HRE 200X220X13 M6006 | 200 | 220 | 13 | PU+NBR |
| HRE 220X240X13 M6006 | 220 | 240 | 13 | PU+NBR |
| HRE 240X260X13 M6006 | 240 | 260 | 13 | PU+NBR |
| HRE 250X270X13 M6006 | 250 | 270 | 13 | PU+NBR |
| HRE 280X300X15 M6006 | 280 | 300 | 15 | PU+NBR |
| HRE 300X320X13 M6006 | 300 | 320 | 13 | PU+NBR |
