PPA pneumatic piston seal features a compact PU design, low friction, smooth running performance, and reliable sealing in dry and oil-free air applications.
Item NO.:
PPAOrder(MOQ):
50Payment:
T/TProduct Origin:
ChinaShipping Port:
Shanghai、NingboProduct Description

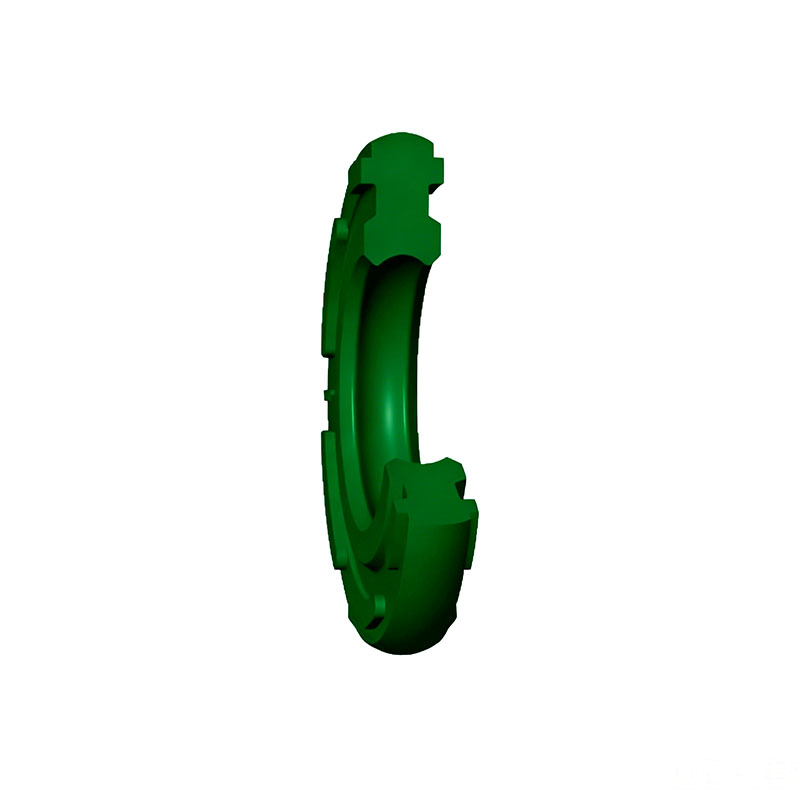

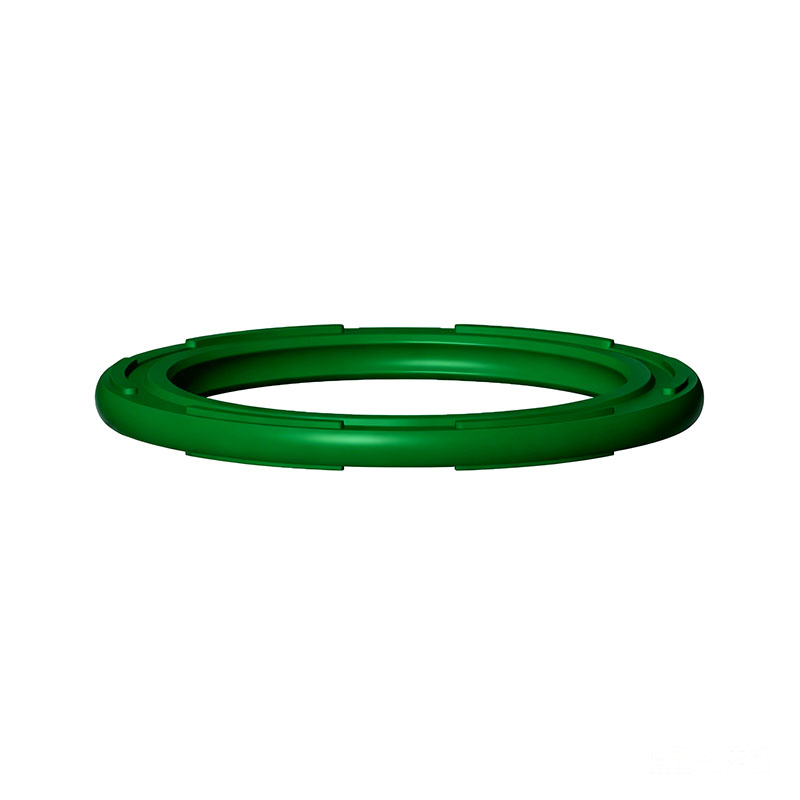

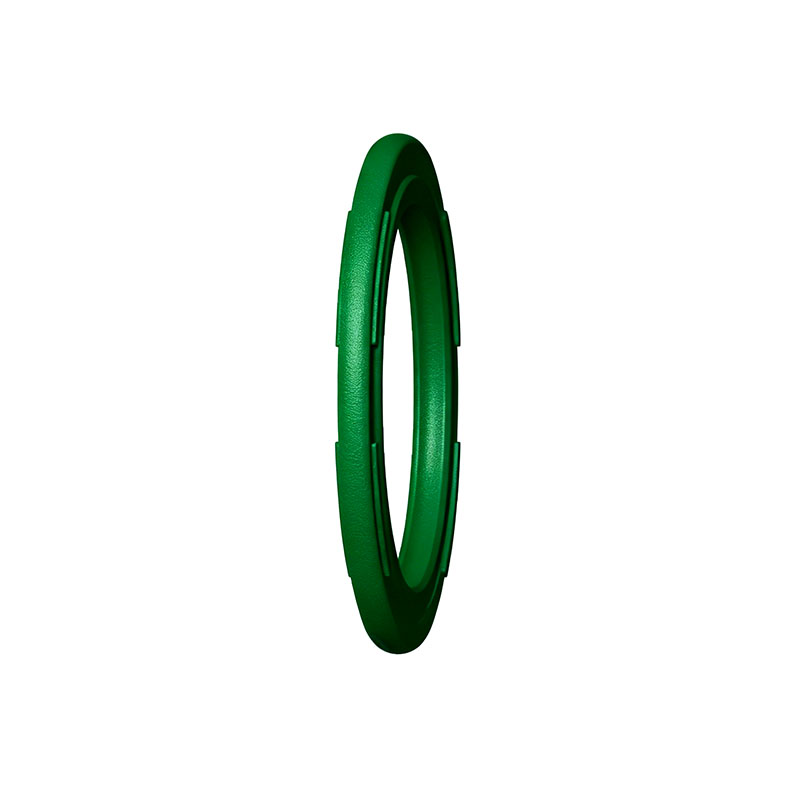

PPA PU Double Acting Piston Seal is a barrel-shaped sealing element designed for use in pneumatic cylinders and valves. Its compact profile requires a small installation groove while providing reliable sealing performance, making it suitable for space-constrained pneumatic applications.
With a compact cross-section and smooth sealing lip geometry, PPA helps minimize both dynamic and static friction for smooth and stable piston movement. The pneumatic piston seal is suitable for applications using dry air as well as oil-free compressed air. The smoothly transitioned sealing lips help reduce wear during reciprocating movement, contributing to reliable sealing performance and a longer service life.
Technical Data
| Parameter | Value |
| Operating temperature | -20°C to +100°C |
| Working Pressure | ≤ 70 MPa |
| Surface speed | ≤ 1 m/s |
| Material | PU+NBR+POM |
| Design type | Mining Rod Seal |
| Unit system | Metric |
| Working Fluids | Water-soluble hydraulic fluid HFA, water-in-oil hydraulic fluid HFB |
Advantages

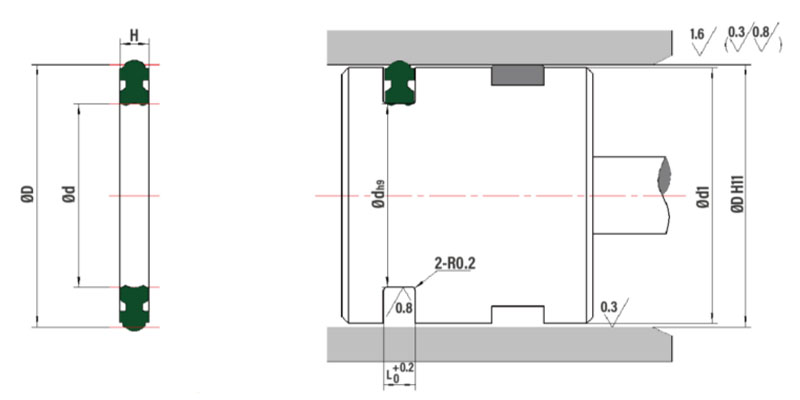

Product Parameter Table
| Designation | Rod diameter | Housing groove diameter | Housing groove width | Primary sealing element |
| [mm] | [mm] | [mm] | ||
| PPA 10X5.4X1.8 | 5.4 | 10 | 1.8 | PU |
| PPA 12X7.4X1.8 | 7.4 | 12 | 1.8 | PU |
| PPA 15X10.4X1.8 | 10.4 | 15 | 1.8 | PU |
| PPA 16X11.4X1.8 | 11.4 | 16 | 1.8 | PU |
| PPA 20X14X2.4 | 14 | 20 | 2.4 | PU |
| PPA 25X17X3.2 | 17 | 25 | 3.2 | PU |
| PPA 30X22X3.2 | 22 | 30 | 3.2 | PU |
| PPA 32X24X3.2 | 24 | 32 | 3.2 | PU |
| PPA 40X32X3.2 | 32 | 40 | 3.2 | PU |
| PPA 50X40X4 | 40 | 50 | 4 | PU |
| PPA 63X53X4 | 53 | 63 | 4 | PU |
| PPA 80X65X6 | 65 | 80 | 6 | PU |
| PPA 100X85X6 | 85 | 100 | 6 | PU |
| PPA 125X110X6 | 110 | 125 | 6 | PU |
| PPA 140X125X6 | 125 | 140 | 6 | PU |
| PPA 150X135X6 | 135 | 150 | 6 | PU |
| PPA 160X140X8 | 140 | 160 | 8 | PU |
| PPA 175X155X8 | 155 | 175 | 8 | PU |
| PPA 180X160X8 | 160 | 180 | 8 | PU |
| PPA 200X180X8 | 180 | 200 | 8 | PU |
| PPA 250X230X8 | 230 | 250 | 8 | PU |
| PPA 300X280X8 | 280 | 300 | 8 | PU |
