HPGA Double-Acting PTFE Piston Seal features a PTFE sealing ring, NBR energizer, and nylon backup rings for low friction, anti-extrusion performance, and reliable sealing in heavy-duty hydraulic cylinders. Ideal for double acting hydraulic cylinder piston seals.
Item NO.:
HPGAOrder(MOQ):
50Payment:
T/TProduct Origin:
ChinaShipping Port:
ShanghaiProduct Description

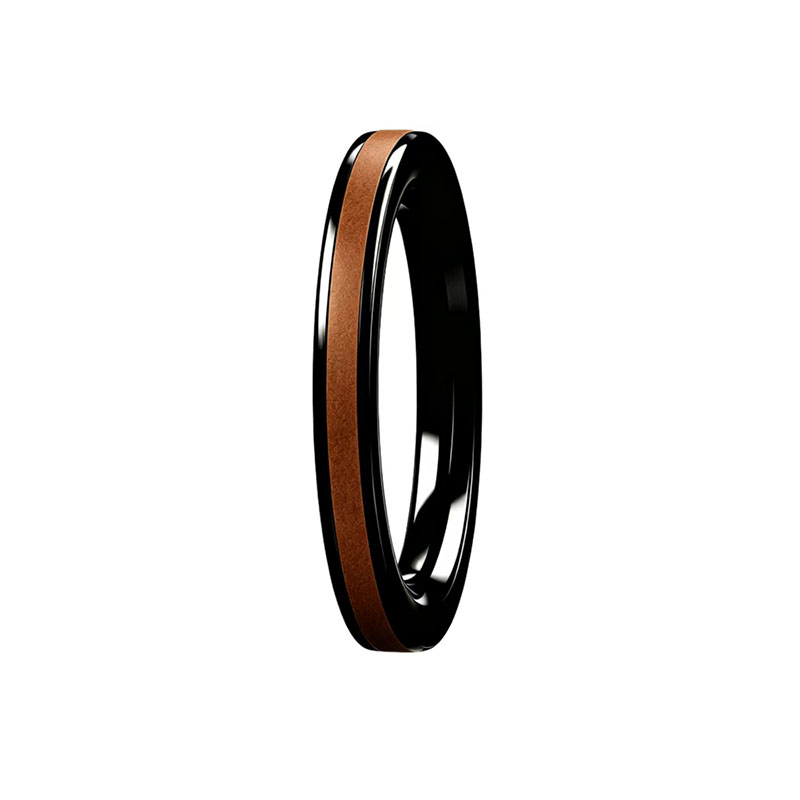

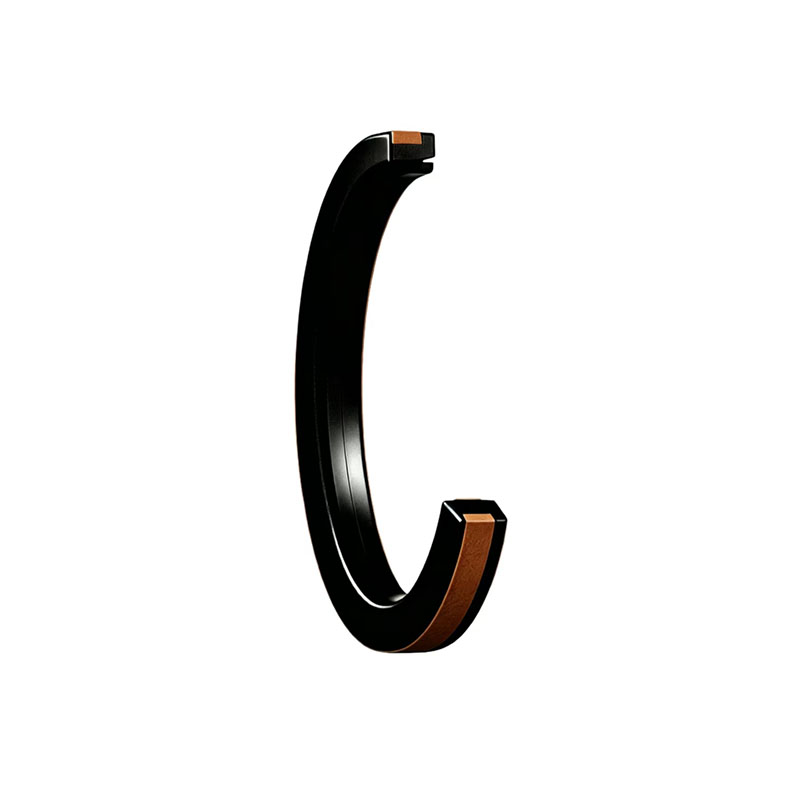

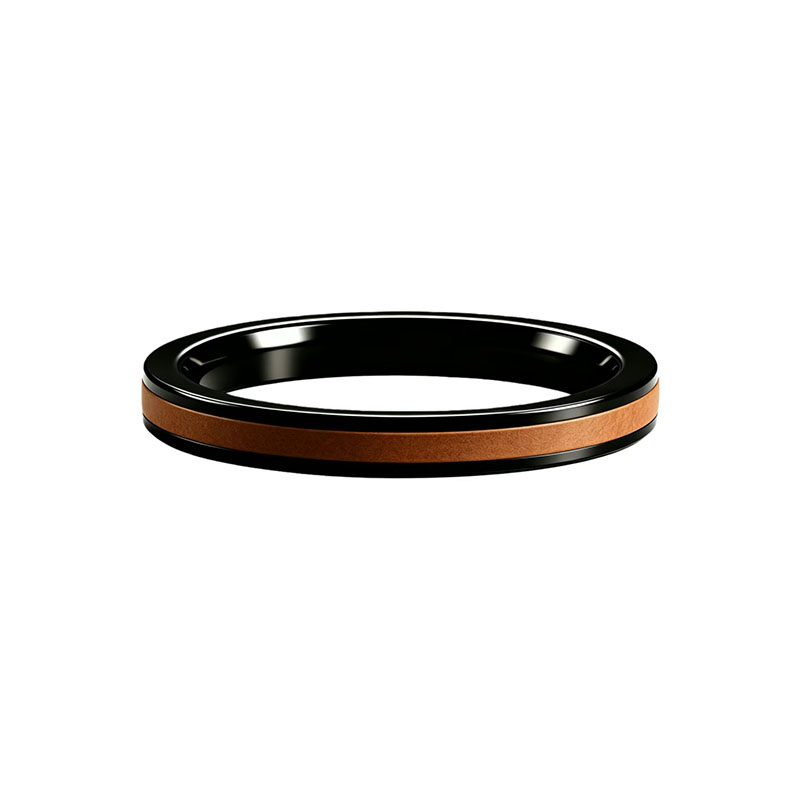

HPGA Double-Acting PTFE Piston Seal is a high-performance sealing solution designed for hydraulic cylinders. The seal consists of a PTFE sealing ring, an NBR energizer, and two modified nylon anti-extrusion rings, providing excellent sealing performance under demanding operating conditions.
This double acting composite PTFE piston seal combines the low-friction characteristics of PTFE with the elasticity of NBR, ensuring reliable sealing in both directions. Its extremely low static and dynamic friction helps eliminate stick-slip effects and enables smooth operation, particularly in low-speed applications. The reinforced anti-extrusion rings provide excellent resistance to high-pressure extrusion and pressure spikes, making the HPGA ideal for heavy-load hydraulic systems.
Widely used as a PTFE hydraulic piston seal in construction machinery, industrial equipment, and mobile hydraulic applications, the HPGA delivers long service life, high efficiency, and dependable performance in demanding environments.
Technical Data
| Parameter | Value |
| Operating temperature | -35°C to +110°C(M5000) -20°C to +130°C(M500H) |
| Working Pressure | ≤ 50 MPa |
| Surface speed | ≤ 1.5 m/s |
| Material | PU+NBR/HNBR+Nylon |
| Design type | Composite Piston Seal |
| Unit system | Metric |
Product Advantages
Product Parameter Table
| Designation | Rod diameter | Housing groove diameter | Housing groove width | Primary sealing element |
| [mm] | [mm] | [mm] | ||
| HPGA 50X36X9 M500H | 36 | 50 | 9 | PU+HNBR+Nylon |
| HPGA 60X46X9 M500H | 46 | 60 | 9 | PU+HNBR+Nylon |
| HPGA 65X50X11 M500H | 50 | 65 | 11 | PU+HNBR+Nylon |
| HPGA 70X55X11 M500H | 55 | 70 | 11 | PU+HNBR+Nylon |
| HPGA 75X60X11 M500H | 60 | 75 | 11 | PU+HNBR+Nylon |
| HPGA 80X65X11 M500H | 65 | 80 | 11 | PU+HNBR+Nylon |
| HPGA 85X70X11 M500H | 70 | 85 | 11 | PU+HNBR+Nylon |
| HPGA 90X75X11 M500H | 75 | 90 | 11 | PU+HNBR+Nylon |
| HPGA 95X80X11 M500H | 80 | 95 | 11 | PU+HNBR+Nylon |
| HPGA 100X85X12.5 M500H | 85 | 100 | 12.5 | PU+HNBR+Nylon |
| HPGA 105X90X12.5 M500H | 90 | 105 | 12.5 | PU+HNBR+Nylon |
| HPGA 110X95X12.5 M500H | 95 | 110 | 12.5 | PU+HNBR+Nylon |
| HPGA 115X100X12.5 M500H | 100 | 115 | 12.5 | PU+HNBR+Nylon |
| HPGA 120X105X12.5 M500H | 105 | 120 | 12.5 | PU+HNBR+Nylon |
| HPGA 125X102X16 M500H | 102 | 125 | 16 | PU+HNBR+Nylon |
| HPGA 130X107X16 M500H | 107 | 130 | 16 | PU+HNBR+Nylon |
| HPGA 135X112X16 M500H | 112 | 135 | 16 | PU+HNBR+Nylon |
| HPGA 140X117X16 M500H | 117 | 140 | 16 | PU+HNBR+Nylon |
| HPGA 145X122X16 M500H | 122 | 145 | 16 | PU+HNBR+Nylon |
| HPGA 150X127X16 M500H | 127 | 150 | 16 | PU+HNBR+Nylon |
| HPGA 160X137X16 M500H | 137 | 160 | 16 | PU+HNBR+Nylon |
| HPGA 170X147X16 M500H | 147 | 170 | 16 | PU+HNBR+Nylon |
| HPGA 180X157X16 M500H | 157 | 180 | 16 | PU+HNBR+Nylon |
| HPGA 185X162X16 M500H | 162 | 185 | 16 | PU+HNBR+Nylon |
| HPGA 190X167X16 M500H | 167 | 190 | 16 | PU+HNBR+Nylon |
| HPGA 200X177X16 M500H | 177 | 200 | 16 | PU+HNBR+Nylon |
| HPGA 210X187X16 M500H | 187 | 210 | 16 | PU+HNBR+Nylon |
| HPGA 220X197X16 M500H | 197 | 220 | 16 | PU+HNBR+Nylon |
| HPGA 225X202X16 M500H | 202 | 225 | 16 | PU+HNBR+Nylon |
| HPGA 230X207X16 M500H | 207 | 230 | 16 | PU+HNBR+Nylon |
| HPGA 240X217X16 M500H | 217 | 240 | 16 | PU+HNBR+Nylon |
| HPGA 250X222X17.5 M500H | 222 | 250 | 17.5 | PU+HNBR+Nylon |
| HPGA 260X232X17.5 M500H | 232 | 260 | 17.5 | PU+HNBR+Nylon |
| HPGA 270X242X17.5 M500H | 242 | 270 | 17.5 | PU+HNBR+Nylon |
| HPGA 280X252X17.5 M500H | 252 | 280 | 17.5 | PU+HNBR+Nylon |
| HPGA 300X272X17.5 M500H | 272 | 300 | 17.5 | PU+HNBR+Nylon |
| HPGA 320X292X17.5 M500H | 292 | 320 | 17.5 | PU+HNBR+Nylon |
HPGA Piston Seal
 |
|
| Material code | M5000/M500H |
| Speed | Up to 1.5 m/s (4.8 ft/s) |
| Temperature range | -35°C to +110°C(–31 to +230 °F) -20°C to +130°C(–4 to +266 °F) |

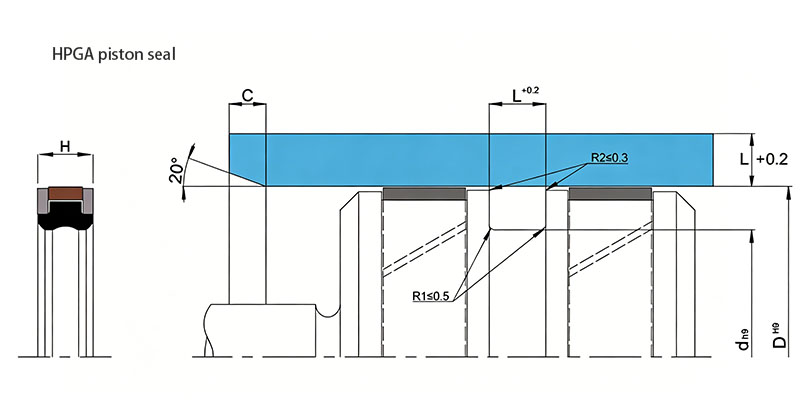

| Dimension standards | Some sizes fit seal housings in accordance with ISO 6195-B:2013. |
| Size list | → Metric |
| Additional information | → Double-Acting Piston Seal |
| Maximum values of application parameters (e.g. speed, temperature) should not be applied continuously nor simultaneously. | |
